Insulated boom sections
Fiberglass upper boom and a lower-boom fiberglass insert are identified in the drawings.
01 / INSULATED GRAPPLE SAW
SLIM TRIM
80-I
Reach into the work.
Keep the operator on the ground.
A rear-property tracked grapple saw with insulated boom sections, radio remote controls, and spider-style outriggers.
- Reach shown
- 80 ft
- Grapple capacity listed
- 1,000 lb
- Grapple saw cut
- 16 in
- Operation
- Radio remote
MACHINE OVERVIEW
Compact in transit.
Purposeful at work.
The supplied design brings tracked access, boom reach, and grapple control together in one machine.
Control from the ground
Radio remote operation for the drive, boom, and grapple, with full ground controls also shown.
Integrated grapple saw
A heavy-duty 16-inch-cut grapple saw, with a brochure-listed grapple capacity of 1,000 lb.
Transport & setup
Max-Trax variable-width tracks and spider-style outriggers. The brochure describes self-loading onto a flatbed or trailer.
TECHNICAL DETAIL
The details
behind the machine.
Dimensions and features transcribed from the supplied SLIM TRIM 80-I brochure.

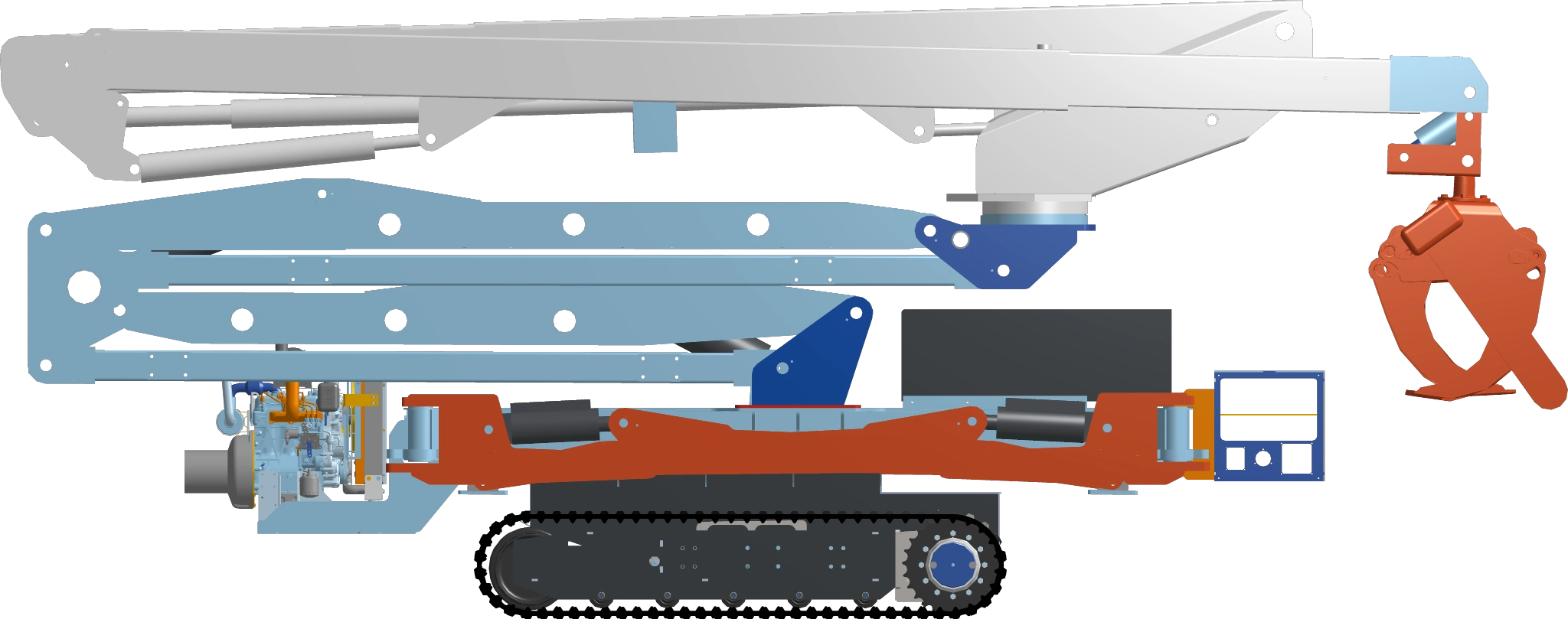

Stowed profile
Brochure, page 3. The drawing identifies the main components and stowed dimensions.

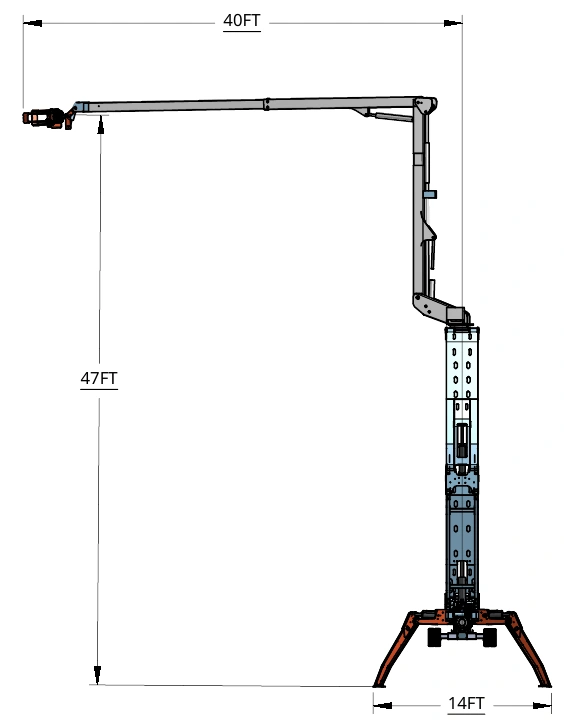

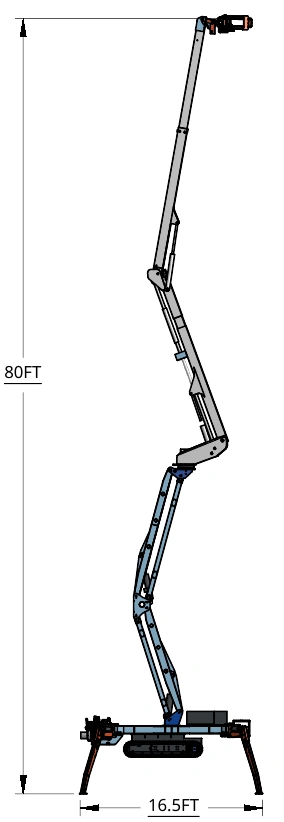

Reach drawings
Brochure, page 4. These are different illustrated configurations, not a load chart. Confirm the working envelope and capacity for your application with UPCO.
At a glance
| Reach shown | 80 ft |
|---|---|
| Horizontal reach shown | 40 ft |
| Stowed length | 20 ft |
| Stowed height | 8 ft |
| Grapple capacity listed | 1,000 lb |
| Grapple saw cut | 16 in |
| Extended track width | 68 in |
| Power | Diesel |
| Controls | Radio remote + ground controls |
SPECIFICATION NOTE
Retracted track-width figures differ across the supplied materials. Confirm the final transport width and access clearance with UPCO. The brochure describes CAT C / 46 kV boom insulation; confirm the applicable insulation specification, working envelope, and load capacity before selecting equipment.
PDF
Download brochure
SLIM TRIM 80-I brochure
Original supplied document · 4 pages · 9.3 MB
